Designers and Builders of custom Packaging machinery

Our Product Line includes :-

Automatic TL’D lamps packing machine

Auto-Load Cartoner machine

Automatic cans loading machine

Automatic case bottom sealer & closure machine

Semi-automatic case closure & sealer machine

Semi-automatic box sealer and closure machine

Fabric folding and cutting machine

Horizontal wrapper machine

Automatic tissue folding and cutting machine

Roll-feed labeller machine

Semi-automatic cartoner machine

Semi-automatic bagger machine

Wet towellets manufacturing machine

Inkjet lock tab machine

Intermittent motion horizontal cartoner machine

For carton flaps hot melt adhesive gluing and closing of loading carton.

CARTON SIZE RANGE

Length between flaps 120 - 220 mm.

Width 34 - 150 mm.

Height 20 - 60mm.

FEATURE

Handwheel adjustment for quick size change.

Heavy duty chain drives.

0.75 Kw motor with variable speed control.

Electrical 3 phases / 380 Volts / 50 Hz.

Hot-melt adhesive applicator unit with 2 hosed, 2 guns.

Shure-Glue NC-12 by Shure-Glue Systems Inc. U.S.A.

Loading space appx. 1,800 mm.

Speed up to 90 cartons per minute.

FUNCTION OF MACHINE

Carton is erected and loaded product by operator. It is then placed into the machine with two top flaps open. Carton is then located by continuously moving flight-chain which passes it over hot-melt guns. These units apply hotmelt adhesive glue lines onto the inner flaps both sides. After the glue is applied the top flaps are automatically closed and sealed.

STANDARD FEATURES

Carton magazine low level warning

Carton erection / Carton feeder

High volume vacuum pump

Adjustable size carton

Manual products loading

Flap closing with HM Adehesive

Finished cartons counter

Variable speed control

Imergency stop and safety guards

carton size Width 30 - 150 mm.

Height 20 - 60 mm.

Length 120 - 200 mm.

speed up to 80 catons/min

air 6 bar

drive motor gearmotor 2.2 kw

control PLC, inverter

The 624 machine is desinged to erect end flap carton automatically, by means of a vacuum pick-off from the magazine, and to place them into a continously moving flight chain conveyor. The products are loaded manually into bucket conveyor and carried into loader which insert them into auto loader which inserts them into erected cartons. Then the carton flaps are closed and hot melt sealing both ends, and the filled-sealed cartons discharged from the delivery end of the machine.

This NP2000 machine is desinged to optimize production while cutting labour costs.

High performance is expected and achieved by utilizing opposing vacuum cups to open the case.

NP2000 a fully automatic case erector for erecting and bottom sealing with hot melt glue cloasure. The NP2000 is desinged to be tough, durable, and easy to operate. This unit is designed to optimize production while cutting labour costs. High performance is expected and achieved by utilizing opposing vacuum cups to open the case. This will ensure a case is opened every time.

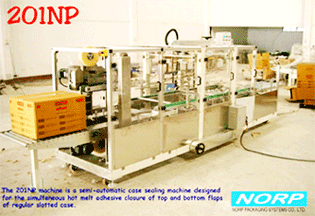

The 201NP machine is a semi-automatic case sealing machine desinged for the simultaneouse hotmelt adhesive closure of top and bottom flaps of regular slotted cased. The machine has been compacked to smallest possible size yet handle a size range comparable to other machine, has rollers infeed with conveyor belt table, simple height and width adjustment, adhesive pattern, including skip, simple adjustment by photo sensors, This machine is equipped with wheels for moving to location.

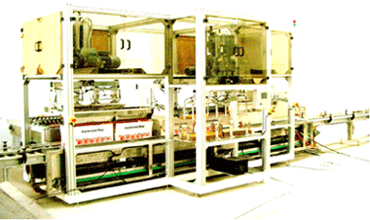

completed with

Empty case infeed conveyor

Can loading (first)

Paper partition auto feed

Can loading (top)

Discharge rollers

Conveyor

Contact Person
Mr.Nikom Paullukin
Packaging Systems Division Manager
Email : nikom@ptasia.biz
