LINX 7900 spectrum


Know the product   Specification

The Linx 7900 Spectrum pigmented ink printer provides reliable high contrast coding and marking with pigmented inks.

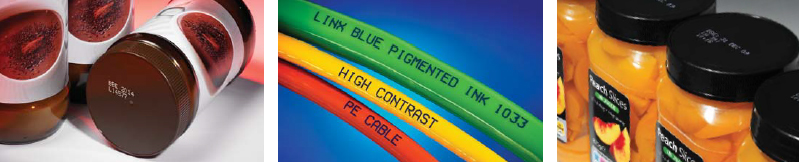

Linx’s pigmented inks are ideal for coding onto dark or coloured surfaces and provide clear durable codes which last for years. The perfect solution for coding onto rubber and plastic extrusions such as cable and pipes.

The Linx 7900 Spectrum industrial pigmented ink printer has an ink system and printhead designed to cope with highly pigmented inks and reduce the need for maintenance.
• No hidden costs
• High opacity inks range for clear, durable codes
• IP65 rating as standard

This advanced continuous ink jet printer offers up to 3 lines of text, graphics and logos as standard, with up to 5 lines as an additional option.

Take more control of your production line with Linx Insight®. This remote web interface allows you to monitor your Linx 7900 from a smart phone, plus download or upload messages from a PC. And Linx Insight is included with the printer at no extra cost. All you need is internet access on your PC or smart phone, and an ethernet connection to the printer.

Simple printer control
• Remote printer monitor and control with Linx Insight
• Quick code changes using a barcode scanner and QuickSwitch® software
• Easy transfer of messages between printers with a standard USB port or using Linx Insight

Lowest running costs
• Low solvent consumption, with no mechanical stirrers or expensive factory air
• Minimal parts changed at scheduled services – no expensive ink system assemblies to replace, so no hidden costs

Increased production uptime
• Automatic and thorough cleaning of the printhead and conduit at every shutdown. Linx’s unique FullFlush® system ensures reliable startups
• Fast mistake proof refills with the SureFill® system

Extra features – as standard
• Ethernet port
• 3 line printing
• Data Matrix 2D codes
• RS232 connectivity
• External single stage alarm output
• Connectivity for product detectors and shaft encoders


Printing capability
• Up to 5 lines of text, graphics, logos, barcodes
• 3 lines as standard
• Maximum print speed of 7.28m/s (for single line of code)
• Print heights from 2.1mm to 13.8mm
• Inverse Image barcodes and text e.g. white on black
• Rotated character (tower) printing
• Dynamic reverse/invert printing for traversing lines
• Data Matrix 2D codes



Programming facilities
• Linx Insight remote printer control and status view
• Programmable pre-set ink mix times
• Simple menu-driven WYSIWYG message creation and editing
• QuickSwitch® message selection and editing using a barcode scanner
• USB port for copy and back-up of message and printer settings, and for easy transfer of messages between printers

Physical characteristics
• Curved stainless steel casing with minimal dirt traps
• IP65 (dust proof) rating as standard
• Weighs only 24kg
• No factory air required


thinking along your line

Linx and LogoJet are registered trademarks of Linx Printing Technologies Ltd.
© Linx Printing Technologies Ltd 2009.
