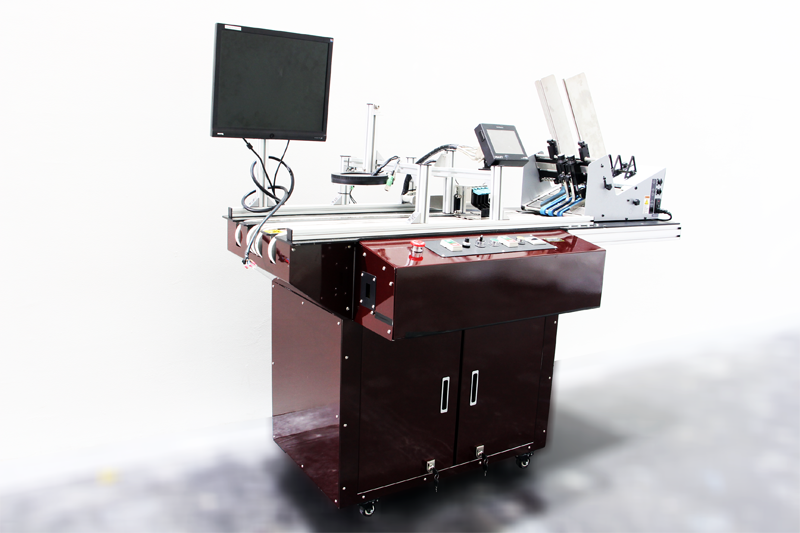

ST-71 Transporting System
Multipurpose for printing in-and off-line


Powerful, reliable and precise
The Conveyor Vacuum Transport  reliable transport of envelopes, magazines, paper, cardboard and other stock.

Vacuum system
The mail table is equipped with five vacuum sections  each individually controlled. The divided vacuum system makes it possible to feed stock of all shapes and sizes, including very long pieces that remain unfixed until the alignment is correct.

Further it is possible to lower the vacuum directly under a printhead to avoid air turbulence, which also increases the decap time for the ink cartridge.All mail tables are delivered with a built-in 5000 pulses encoder providing a good resolution for equipment such as inkjet printers.


Technical Details
ST-71 Transporting

Power: 230 VAC 50 Hz
Motor: 1450 r/min 0,25 KW
Gear: 1:5 / M1:40(Drive) / M2:30
Inverter: 230 VAC / 0,25 kW or 115 VAC / 0,25 kW
Safety: Emergency stop (optional external stop)
Coatings: Aluminum Profile Anodised (Frame)
Environmental conditions: Operating temperature 10-40º C
Belts: 5 (20 x 2380 mm) punched
Vacuum: 1 Phase 2 Poles IP54 50 Hz 0.75 Kw 2830 RPM 110/220V 13.0/6.5A
Encoder: 5000 Pu Posital
Running direction: Both directions
Dimensions ST-71 Transport: Dim (WxLxH): 702x1140(450 Table feeder)x840 mm
Height adjustable: 840-900 mm
Weight: approx. 135 kg
Line speed:
   1. variable speed: up to 150 m/min
   2. Distance Left - Right
Work Top: ST-71 Transport : 430x1100 mm
